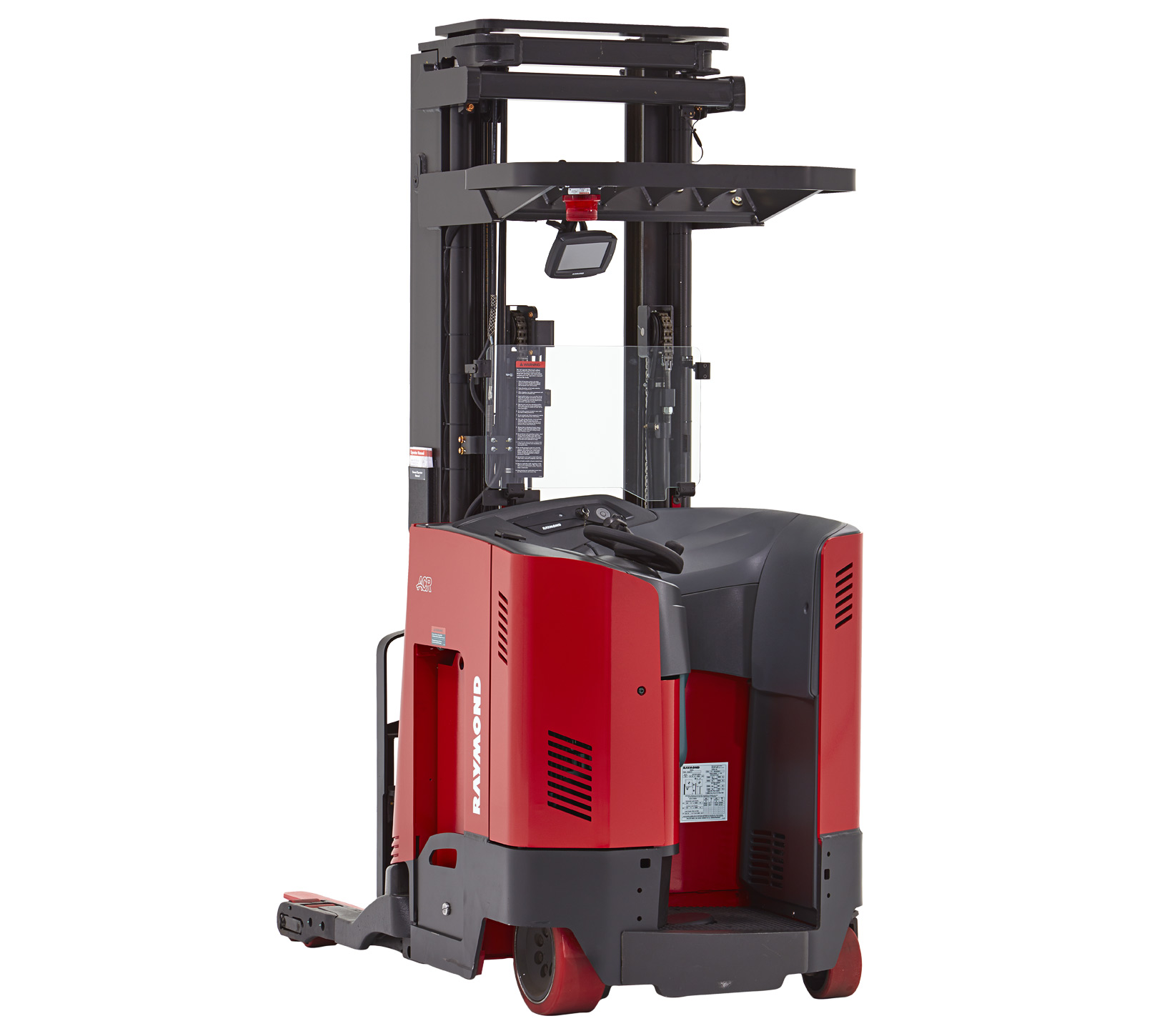

7200 Reach-Fork Truck Forklift Reach Truck
-
-
ACR System
Delivers reliable 24/7 performance; quiet, smooth and precise traction and lift; and more run time per battery charge.ACR System -
Load Stability at Height
Our unique steered idler and inertial dampener work together to provide the operator confidence when handling loads at height.Load Stability at Height -
Ductile Iron Baselegs
Ductile iron is 30% stronger and more durable than steel, ensuring reliable load support and enhanced strength and durability.Ductile Iron Baselegs -
Patented Open View Mast
Provides superior visibility with a direct line of sight to the baselegs, load and rack.Patented Open View Mast -
Universal Stance
With three operating positions, offers greater visibility and allows operators to face the task at hand.Universal Stance
Right-Size Performance
The Raymond 7200 Reach-Fork truck is engineered to fit your narrow aisle application with multiple configurations and smaller battery compartment options to right-size your operation and reduce energy costs. Smaller battery compartments may allow for fewer aisles and more pallet positions than competing models.
- Battery: 24 volts
- Battery Compartment: Available with 14-inch or 16-inch battery compartment
- Capacity: 3,500 lbs. to 4,000 lbs.
- Elevated Height: 270" maximum
- Maximum load: 4,000 lbs., 2,500 lbs. deep reach
- Customized for Your Application: Hundreds of configurations available to meet your specific needs
- share
Built to Perform
-
Battery Shift Life
Longer battery shift life means trucks run longer on a single charge, reducing energy costs and downtime for battery changes. -
Performance Without Compromise
By using less energy, you benefit from lower operational costs with reduced kWh usage and fewer carbon emissions. -
Efficient by Design
Fewer battery changes means more pallets moved over the course of a shift at lower cost.
-
ACR System
Delivers quicker acceleration and electronic braking, faster lift and lower speeds, and smooth directional changes for more efficient load handling and movement in storage aisles. -
Open View Mast
The universal stance configuration allows greater visibility, leading to increased productivity and operator confidence, fewer errors and less product, rack and facility damage. -
Exclusive Steered Idler
Prevents caster snap, reducing the time it takes an operator to back away from a rack with a load at high elevations - making the most of uptime.
-
Reduced Maintenance Requirements
Reduce downtime with advanced, on-board diagnostics that provide self-checking capabilities for simplified troubleshooting, and scheduled maintenance intervals of 500 hours—twice that of competitors. -
Flex Circuit Technology
Easy-to-remove control handle with only 35 parts —61% fewer parts than competing models—for less maintenance and lower costs. -
Bolt-on Wheel Plates
With floating articulation, allows for easy load-wheel replacement and improved ride quality.
-
Low Entry-step Height
Easier compartment entry helps operators avoid unnecessary climbing, minimizing fatigue over the course of a shift. -
Single-axis Control Handle
Simultaneous function with intuitive vehicle controls that are easy to learn, for greater operator confidence and productivity. -
Spacious Compartment
Designed for operator comfort with wraparound, contoured padding, multiple lean points and cushioned floors.
-
A-frame Suspension
Delivers smooth, precise handling with full-time traction and steering alignment. -
Unique Inertial Dampener
Shocks and sways are reduced before they reach the operator compartment—enhancing stability and operator performance. -
Steered Idler Design
Automatically aligns with the drive wheel to prevent caster snap and provides rock-solid stability at high elevations, increasing operator confidence.
-
Virtual Reality Simulator
Exclusive teaching tool that puts forklift operators on an actual reach truck in the most realistic virtual warehouse to improve skills, confidence, efficiency and retention. Eliminates the need for large dedicated training areas.
-

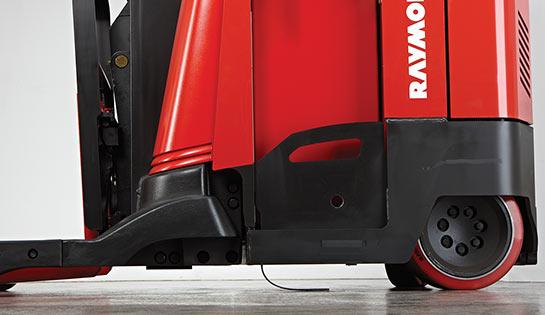

3-inch Underclearance
For small applications that want the versatility to work in trailers, the 3-inch underclearance option allows you to travel over a 21% grade, compared with a 14% grade on a standard 2-inch underclearance.
-
Fork-tip Laser Guide
Assists operators for faster loading and unloading of pallets at height by providing a clearly visible laser guide on the pallet.
-
Height-tilt Indicator
Digital readout shows height of forks and condition of tilt. Ideal for lift heights above 200 inches.
-
Vantage Point Camera
The color display monitor mounted in the operator’s compartment helps the operator to identify, place and retrieve pallets at greater heights.
-
ThermaKit System
For cold storage warehouses, our padded, heated control handle and heated floor cushion keep your operators warm. By keeping hands and feet warmer for longer, ThermaKit enables improved productivity shift after shift.
-
Operator Compartment Sensor System
Designed as a training aid to encourage proper operating procedures. Two light sensors span the entry to the operator compartment, sounding a tone and displaying a message on the operator's display when the sensors are blocked. If stationary, the truck will not travel if the light sensor is blocked.
-
Cold Storage
Refrigerated warehouses, blast freezers, and other cold storage applications require robust control systems. Raymond maintains its own cold storage test facility to replicate the harshest conditions to test and prove our systems in extreme cycles of freezing and thawing.
-
Narrow Aisle
With more than 200 combinations of heights, features and capacities, Raymond Reach trucks for narrow aisle storage offer superior versatility and effective solutions to improve the utilization of your warehouse space.
-
Specialty Rack
Raymond 7000 Series Reach-Fork trucks can interface with every industry-standard warehouse rack. If you have selective, double deep, drive-in/drive-thru, cantilever, pallet flow or push-back racks, Raymond has a solution that will help maximize your storage capacity and productivity.
-
UL EE Applications
Raymond 7000 Series Reach-Fork trucks comply with Underwriters Laboratories (UL) 583. Raymond Type E and EE trucks are UL-tested and UL-certified and designed and manufactured to operate in classified locations as defined in the National Fire Protection Association's NFPA 505.
-
7000 Series Reach-Fork Trucks
Raymond 7000 Series Reach Trucks are designed with industry-leading lift, lower, acceleration and travel speeds – maximizing the number of pallets moved per hour. Whether your operators need to perform in high stacking applications, move from dock to stock areas or travel long distances in your warehouse, our reach trucks offer the right solution designed to keep your operator comfortable and operation moving.
-
Celebrating 65 Years of the Raymond Reach Truck
Raymond pioneered narrow aisle with the invention of the first narrow aisle forklift in 1951. For 65 years, we’ve continuously innovated the reach forklift—from the introduction of AC technology into electric forklifts to the industry's first integrated operator display—to give our customers the best reach trucks in the industry.
-
Vantage Point Camera System
With the Vantage Point option, a camera below the fork carriage delivers high-resolution images to a color monitor in the operator compartment. A clearly visible green reference line on the monitor shows the operator the position of the fork tips, enabling accurate retrieval.
