8250 Pallet Jack Powered by Lithium-ion
-
-

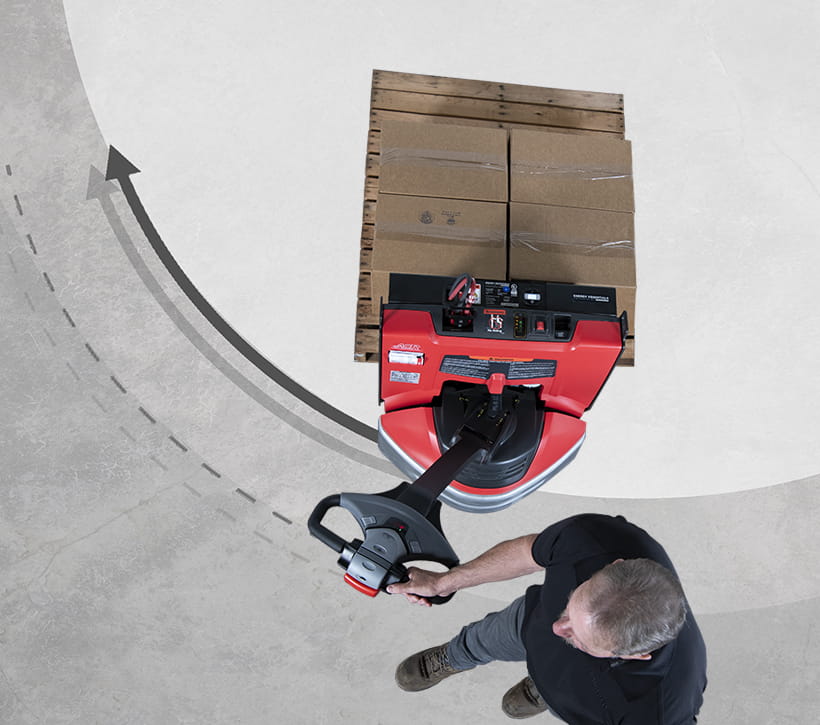

Increased Maneuverability
2" reduced head length results in increased maneuverability in tighter spaces with a 5.8" battery compartment.Increased Maneuverability -
Longer Run Time
3 - 4 consecutive hour run-time means fewer work disruptions to charge or change out batteries.Longer Run Time -

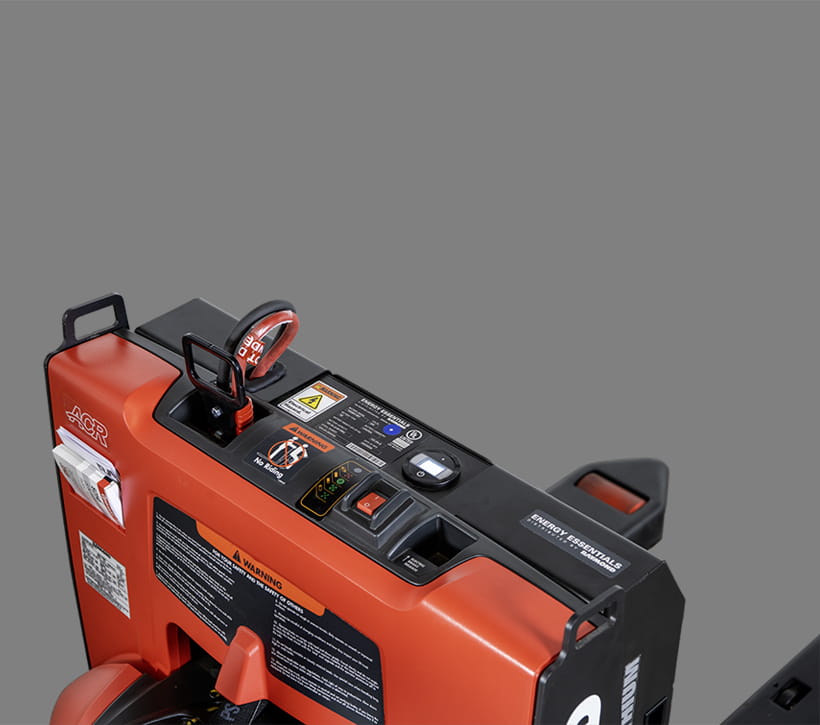

Maintenance Free
The lithium-ion battery requires none of the traditional maintenance associated with other industrial batteries, such as watering, equalizing and cleaning.Maintenance Free -
Low Internal Resistance
Generates less heat resulting in less energy loss, greater capacity that delivers and maintains constant power.Low Internal Resistance -
CAN Communication
Provides continuous communication between the truck and battery.CAN Communication

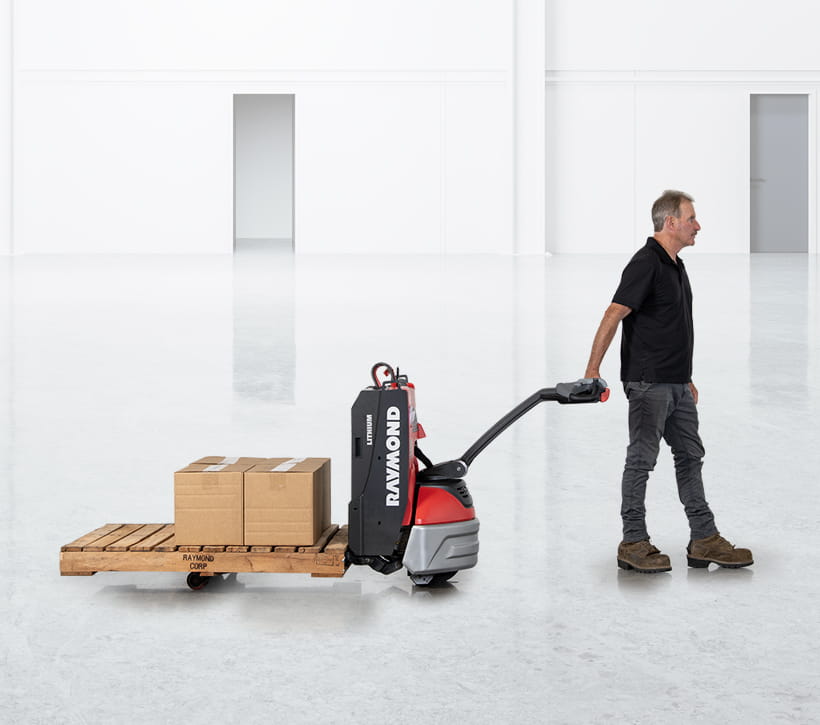

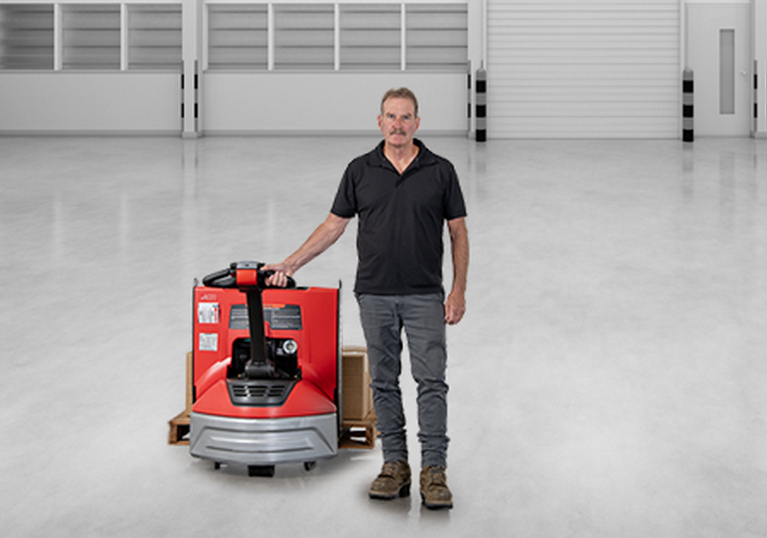

A Reliable Workhorse. Powered by Lithium
The Raymond 8250 walkie pallet jack, powered by lithium-ion, is a reliable workhorse delivering increased power capabilities and efficiencies so that you can run longer, recharge quicker and move more pallets. A 2" reduced head length allows for greater maneuverability in tight spaces. And, maintenance is reduced with a truck that is durably designed with a battery that doesn't need servicing.- Battery: 24V (26 Nominal) Lithium-ion, 78 amp hour
- Battery Compartment: 5.8" battery compartment
- Capacity: 5,000 lbs.
- Power System: AC Traction Control
Built to Perform
-

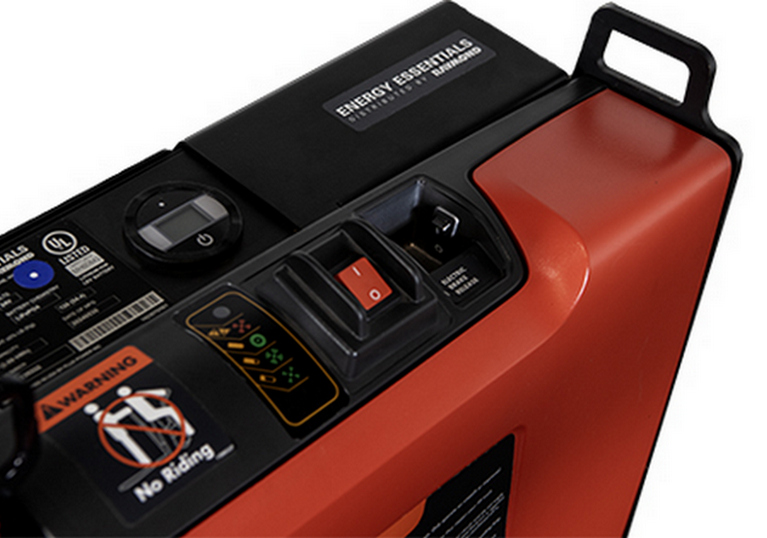

Increased Operator Control
The electric brake release releases the brake during low battery conditions without having to remove the truck cover. The truck still retains braking ability when the handle is in the brake or up position. -

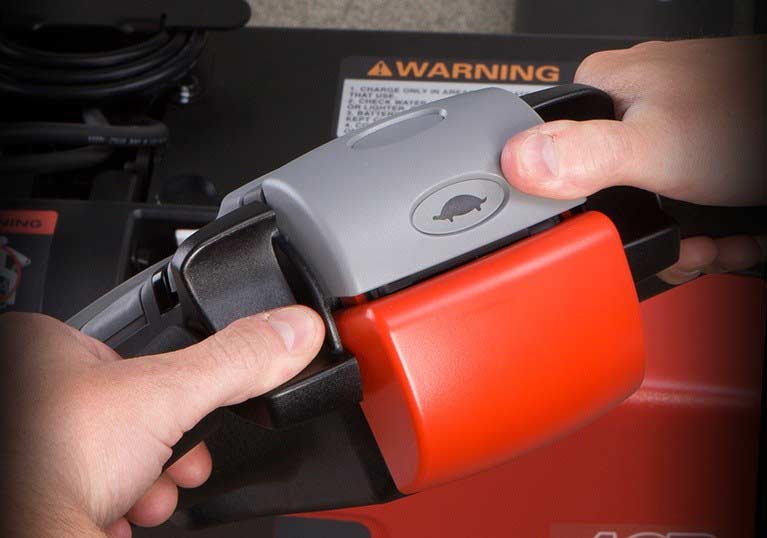

Increased Speed Control
Click2Creep automatically reduces travel speed and allows the operator to move one inch at a time with the tiller tucked tightly to the tractor - providing superior maneuverability at slower, controlled speeds. -
Extreme Environment Operations
Integrated heaters within the lithium-ion pack and cold storage packages enable the truck to work in colder temperatures longer without degrading performance. -

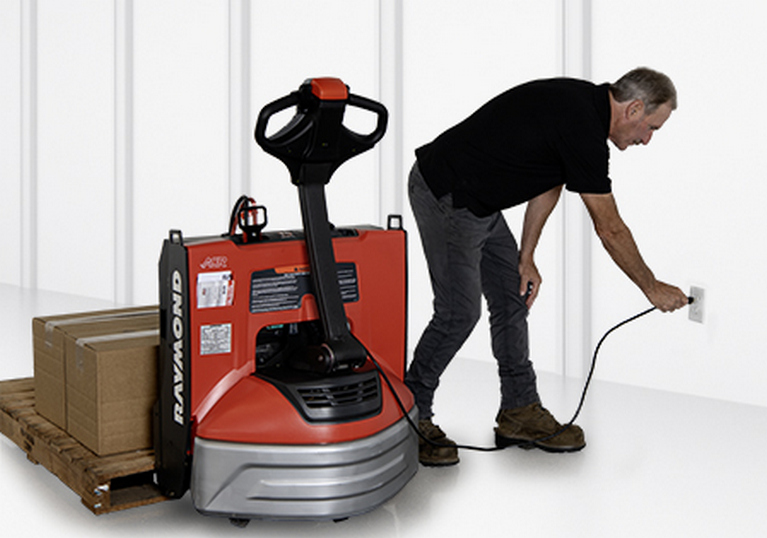

Opportunity Charging & Faster Charging Times
Recharges in as little as 2.5 - 3 hours with a standard 110 outlet (from 0-100% SOC) and benefits from opportunity charging.
-
AC Traction Control
Provides seamless speed transitions so your operators have the control they need to move the truck one inch at a time. -
Regenerative Power
Lithium-ion batteries have better acceptance of regenerative power. -

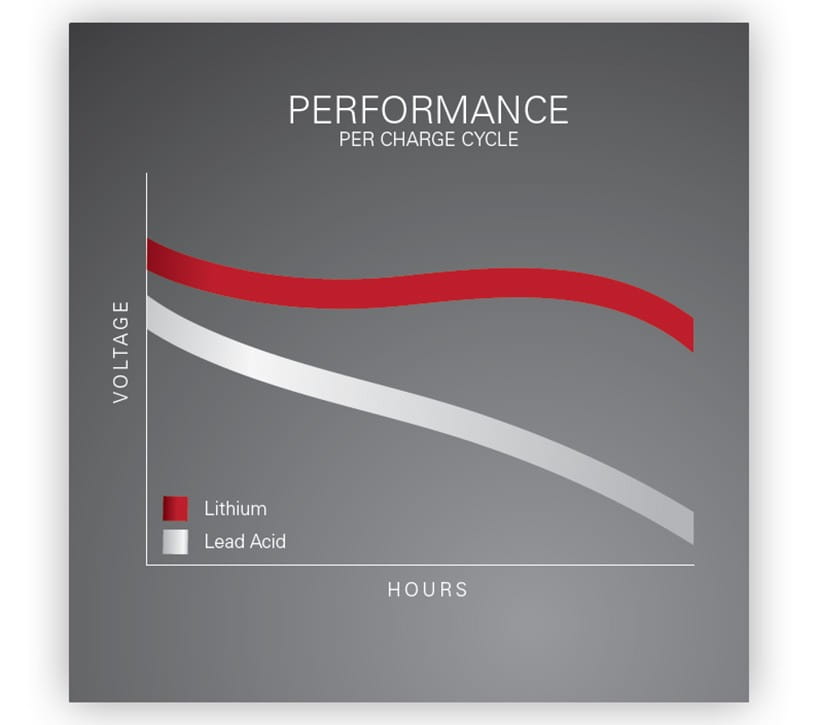

Higher Voltage
Lithium-ion operates at a higher voltage than lead-acid batteries, delivering and maintaining constant performance throughout the day. -
Static Torque Control
Exclusive speed control separates speed from power - providing the torque needed to maneuver the truck up and over lift gates and curbs with smooth, controlled operation at all speeds.
-
IP65 (Pack) and IP65 (Battery) Protection
Sealed for water and dust protection to electrical components for increased reliability and performance in wet environments and regular wash downs. -

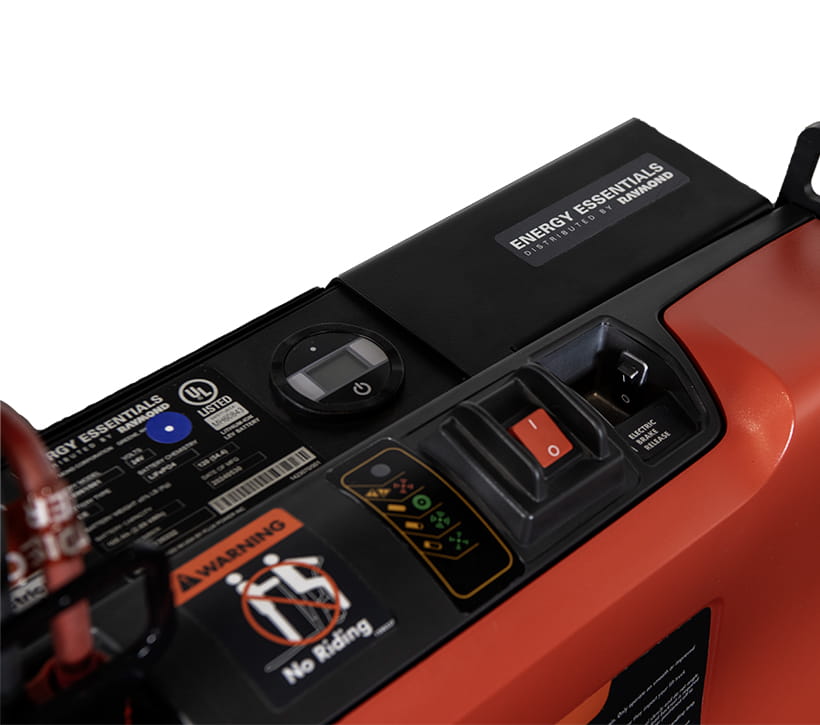

Heads-up Display (HUD)
The HUD provides a visual for the battery state-of-charge along with an audible alarm for low state-of-charge and alerts the operator if maintenance if required. -
Onboard Battery Management System (BMS)
BMS allows you to schedule charge times, notifies you when a charge is required and monitors the charging and usage to prevent overcharging and discharging. -
Intelligent Protection
Four levels of protective features guard against over-discharge - low state-of-charge warning, reserve power mode, manual travel restriction and dormant mode.
-
Reliable Performance in Wet Environments
Stainless steel pins come standard with the truck and help prevent corrosion in wet environments. -
Built-in Run Protection
Built-in run protection prevents damage to the battery pack by allowing a user to plug the pack for opportunity charging without having to disconnect the pack from the truck. -

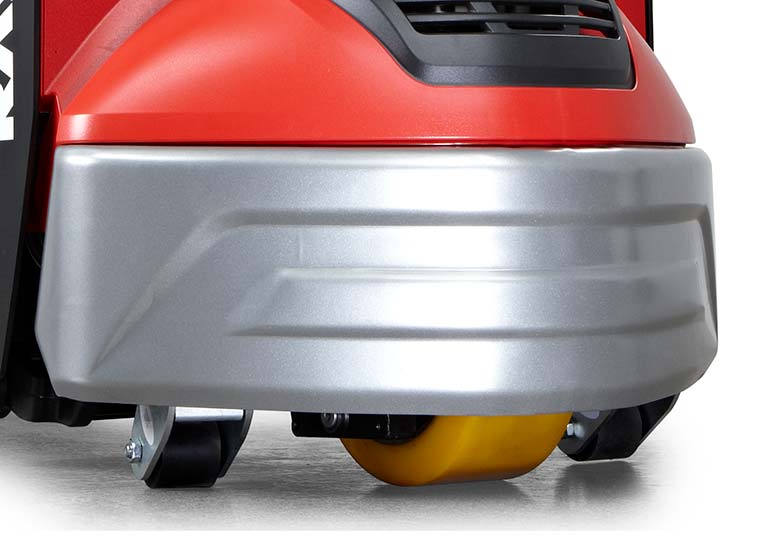

Easy Service Access
Unique removable bumper removes for easy access, eliminating the need to tilt or hoist the truck for service. -

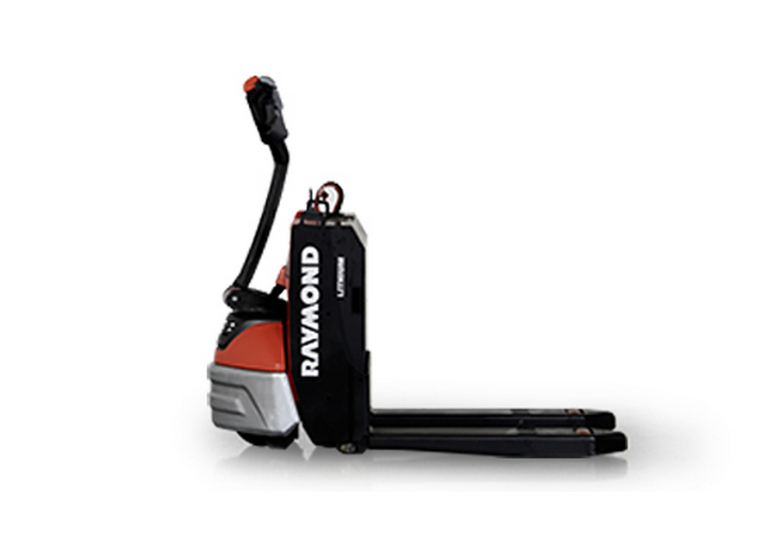

Wear Protection and Operator Training
Lift and Go programmability trains operators to travel with the forks elevated to prevent unnecessary contact and wear over raised surfaces such as dock plates.
-
Ductile Iron
Ductile iron bell crank and wheel forks – almost twice the yield strength of steel – provide greater durability to the undercarriage. -

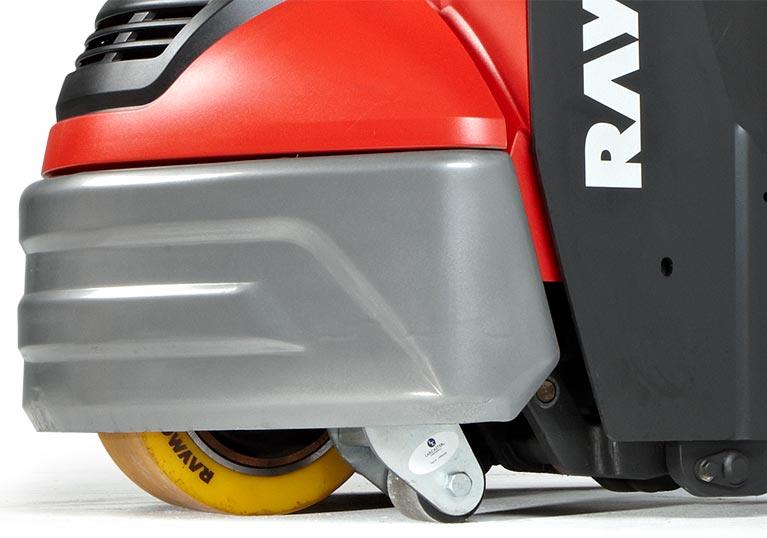

High Strength Low Alloy (HSLA) Bumper
The High Strength Low Alloy (HSLA) ribbed bumper tests 3x greater in strength and durability over competitive bumpers… and weighs less. -
Polycarbonate Covers
High density snap-fit polycarbonate covers deliver great strength and resilience. -
Rugged Battery Design
Rigorously tested for durability with Raymond's full battery pack drop, steel ball drop, vibration and shock and bump track (5 year abuse, 65,000 impacts) tests.
-
2 CMA Battery Option
+ 156 amp hour, 24V lithium-ion
+ Run Time: 6-8 hours (consecutive)
+ Recharging Time: 6 hours (0-100% SOC) -
Cold Storage Conditioning
All temperature hydraulics, transmission oils and temperature sensing components protect control systems — assuring peak performance and productivity, while stainless steel undercarriage pins protect from corrosion and rust. -
Accessory Bar
Interfaces with RAM-mounted accessories to put additional operator tools at their fingertips; available with optional work light and fan. -
PIN Code Pad
The optional personal identification number (PIN) code pad provides password protection for additional security. Store up to 10 different passwords to prevent unauthorized operation. -
Large Storage Tote
The optional tote helps to keep work tools organized and at your operators fingertips for added convenience and productivity throughout the shift. -

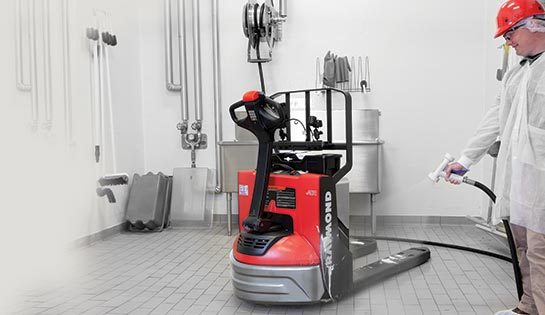

Extreme Environment Protection
Hot-dip galvanization and electronics coatings protect components and extends the life of the truck in wet, corrosive environments. Ideal for processing applications or other environments subject to harsh conditions or frequent wash-downs. -

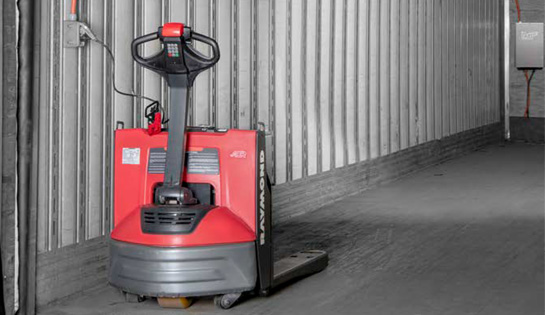

Purkeys Trailer Auxiliary Power System
Ideal for over-the-road applications, converting DC power to AC power, it can be installed into commercial trailers allowing drivers to plug in and charge their electric pallet jack in between deliveries, during transport, to ensure it is ready for use at every stop.
-

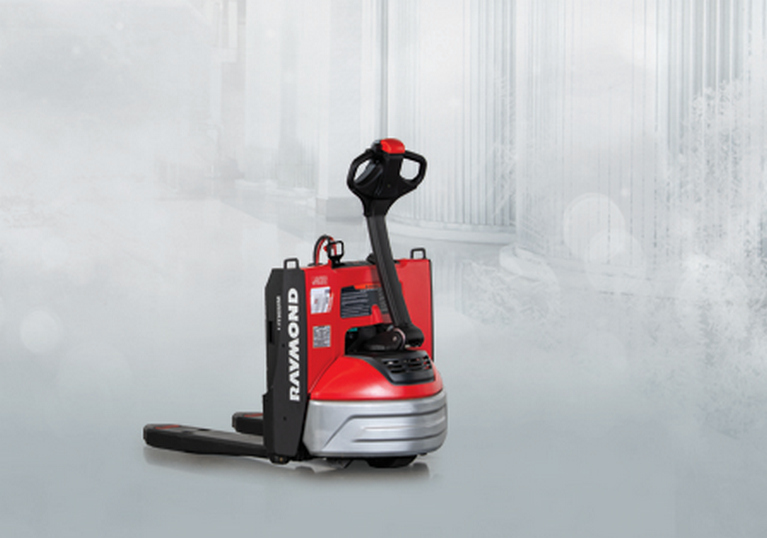

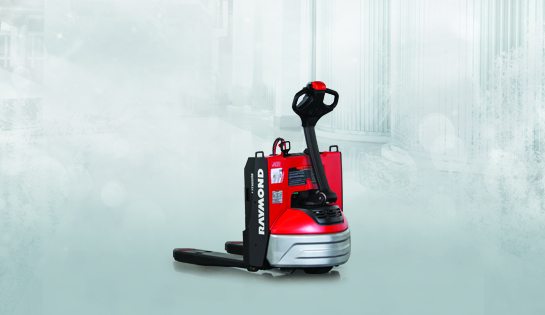

Cold Storage
Refrigerated warehouses, blast freezers, and other cold storage applications require robust control systems. Raymond maintains its own cold storage test facility to replicate the harshest conditions, testing and proving our systems in extreme cycles of freezing and thawing.
-

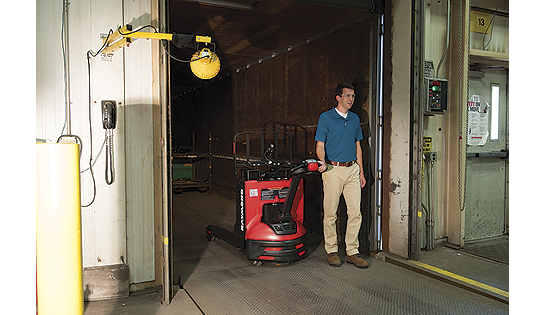

Dock and Delivery
The Raymond 8250 walkie pallet truck is ideal for use on-board delivery trucks. This compact AC-powered walkie is exceptionally maneuverable and allows pin wheeling in trailers for maximum cube utilization.
-

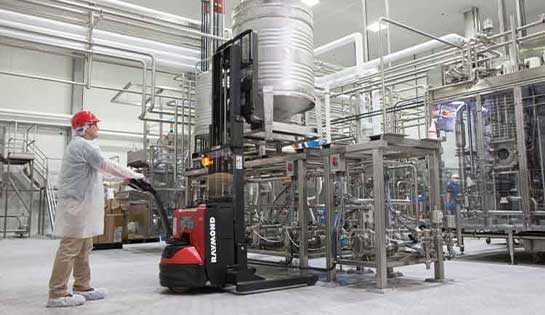

Processing Applications
Raymond offers Extreme Environment Corrosion Protection with hot-dip galvanization on the 8210 electric walkie pallet truck to protect trucks used in wet, caustic and briny applications from moisture and to flush contaminants.
-
UL EE Applications
This lift truck complies with Underwriters Laboratories (UL) 583. Raymond® Type E and EE trucks are designed and manufactured to operate in classified locations as defined in NFPA 505. Type E and EE products are tested and certified by Underwriters Laboratories (UL).
-

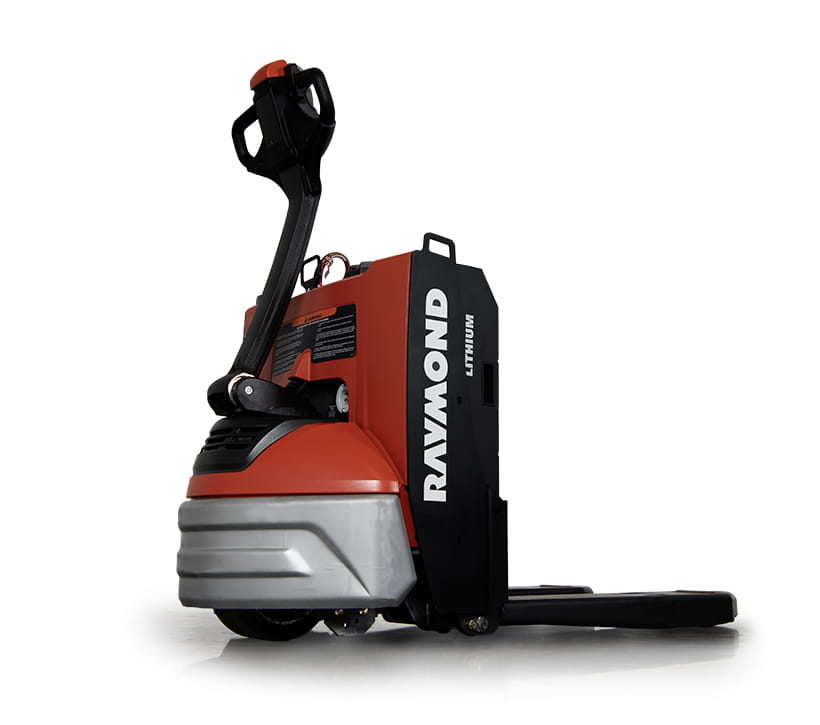

8250: Powered by Lithium-ion
The 8250 Walkie Pallet Truck is a "next generation" pallet truck that delivers greater maneuverability, increased power availability and smooth, controlled operation with an integrated Raymond-built lithium-ion battery.
